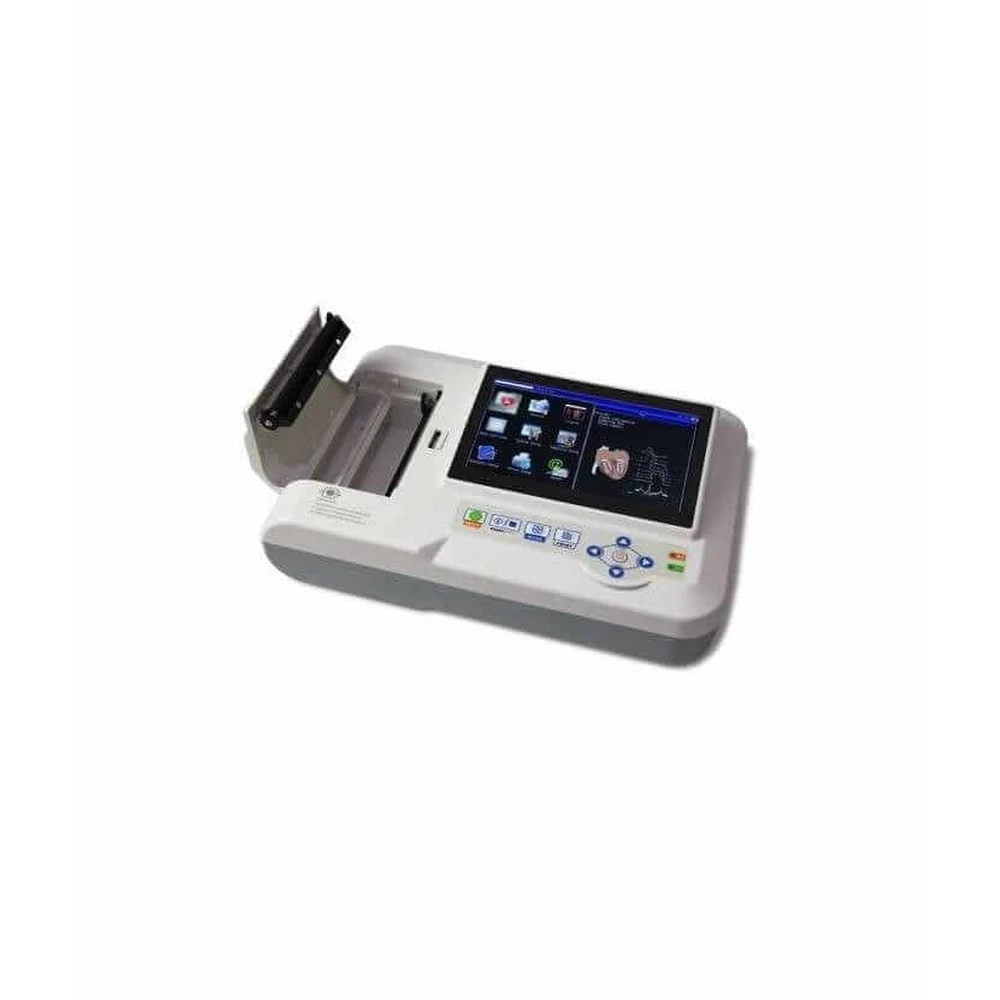

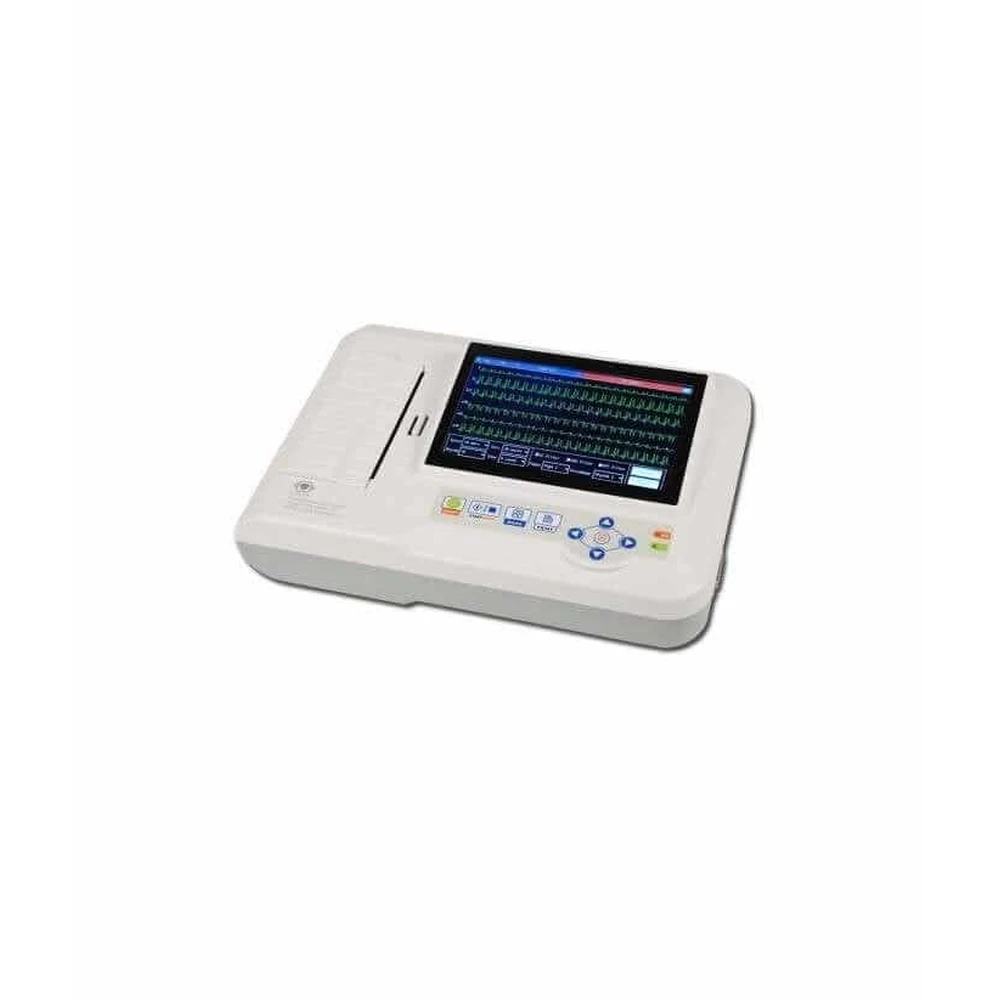

Electrocardiograph Contec ECG 600G with 6 channels and simultaneous acquisition on 12 derivations, equipped with a generous 7-inch TFT LCD Color touch screen with a resolution of 800x 400 pixels, thermal printer, integrated rechargeable battery, internal software for analysis and interpretation, software for connecting to a PC or Laptop via USB cable. \n \nIt is a portable medical device with advanced functions of measuring, storing and interpreting data, useful in any medical unit, Hospital, Private Medical Clinic, Individual Medical Cabinet, but also in the field in case of emergency or during occupational medicine medical investigations. \n \nOperation is simple thanks to the physical buttons for quick calling of functions, thanks to the full keyboard displayed on the touch screen that allows easy registration of patients and the intuitive and user-friendly menu. \n \nIntegrated functions: recording and displaying ECG waves automatically and manually; self-measurement and self-diagnosis of ECG wave parameters; determining the situations of decoupling of the derivatives and exhaustion of the paper; case database management. \n \n Features: \n

\n
• 7-inch color LCD touch screen with a resolution of 800 x 480 pixels, which indicates the operating status and waveform
\n
• Convenient control buttons for quick and comfortable operation
\n
• 12 ECG leads acquired simultaneously, digital signal processor, high quality ECG with AC filter, Baseline filter and EMG filter of ECG signals
\n
• Simultaneous display of 3/6/12 ECG leads and printing status, sensitivity, speed, filter, etc., for an easier interpretation
\n
• Sampling 12 ECG leads simultaneously, analyzing 2x6+1 (rhythm channel), 2x6, 3x4, 3x4+1 (rhythm channel), 4x3, 4×3 4×3+1 (rhythm channel), 6×2, 6×2+1 (rhythm channel), simultaneous recording mode and multiple format report
\n
• The power source includes AC, but also DC through direct power from the integrated battery
\n
• The device includes a rechargeable Lithium Polymer battery (ensures standby operation for 4 hours, printing 150 ECG waveforms or printing for 90 minutes continuously)
\n
• Built-in memory with a capacity of up to 1000 cases
\n
• In review mode, you can view saved waveforms, ECG self-analysis and self-interpretation, waveform parameter, self-interpretation conclusions.
\n
• Paper roll size: 110mmx20m
\n
• Operating mode: automatic or manual
\n
• Recording speed: 25-50 mm/sec (in automatic mode), 5-6, 25-10-12, 5-25-50 mm/sec in manual mode
\n
• Sensitivity: 2.5-5-10-20-40mm/mV
\n
• Automatic analysis and interpretation of parameters: heart rate, PR interval, P duration, QRS, T, Q-T interval, P axis, QRS, etc.
\n
• Internal memory or SD card for 1000 recordings
\n
• Digital filters: AC, EMG, DFT
\n
• Protection against defibrillation
\n

\n Technical details: \n

\n
• Input mode: protection against flooding and defibrillation
\n
• Derivations: 12 standard derivatives
\n
• Patient leakage current: <10 μA
\n
• Input impedance: ≥ 50 MΩ
\n
• Response frequency: 0.05Hz~150Hz
\n
• Time constant: >3.2 s
\n
• CMRR: >60 dB, >100 dB (add filter)
\n
• EMG interference filter: 35 Hz (-3dB)
\n
• Registration mode: thermal printing system
\n
• Recording paper specifications: 110 mm (width) x 20 m (length) high-speed thermal paper
\n
• Paper speed: Auto-registration: 25 mm/s, 50 mm/s, error ± 5%; Rhythm recording> 25 mm/s, 50 mm/s, error ± 5%; Manual recording: 5 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s, error ± 5%
\n
• Sensitivity: 5, 10, 20 mm/mV, error ± 5%. Standard sensitivity: 10 mm/mV ± 0.2 mm/mV
\n
• Auto-recording: recording by recording format and auto mode, automatic change of derivations, automatic measurement and analysis
\n
• Rhythm recording: recording by rhythm format and rhythm mode, automatic measurement and analysis
\n
• Manual recording: recording according to the recording format, manual change of derivations
\n
• Measurement parameters: HR, PR interval, P duration, QRS duration, T duration, QT interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S (V1), R(V5)+S(V1)
\n
• Product safety type: class I, type CF, with defibrillation circuit
\n
• Bias voltage: ±300 mV
\n
• Noise level: ≤ 15 μVp-p
\n
• Safety specifications: 2 pcs ϕ5x20 mm AC; delay time T250 mA/250 V (supply > 220 V)
\n

\n Operation \na) Ambient temperature: +5 ~+35°C \nb) Relative humidity: ≤ 80% \nc) Power supply: AC: 100-240V. 50/60 Hz / DC: rechargeable lithium battery 7.4V, 3700 mAh \nd) Atmospheric pressure: 86~106 kP \n \n Storage and transportation \na) Ambient temperature: -10 ~+55°C \nb) Relative humidity: ≤ 95% \nc) Atmospheric pressure: 50~106 kPa \n \n Dimensions: 315x215x92mm. \n \n Net weight: 2.3 kg. \n \n The delivery set contains: \n

\n
• Contec CMS 600G ECG medical device
\n
• Patient cable 12 derivations with defibrillation protection
\n
• 1 pc. ECG paper roll
\n
• 4 pcs. limb clamp electrodes
\n
• 6 pcs. suction cup precordial electrodes
\n
• PC software ( in the form of a program download link, written on the inside of the product packaging )
\n
• USB cable for connecting to PC
